Produces consistent, non-pressurized and safe ethylene levels to enhance the cure

No mixture with inert gas is needed as our system is inherently safe

Easy to make only as much ethylene as needed for the target barn, no need to store large quantities of compressed gas on site

There are no residues as a result of our ethylene application

Adjustable ethylene output allows for adaptation to any ethylene PPM requirement and any barn size

TÜV SÜD, Certificate Number Z2 026083 0010

CE: 2014/35/EU: EC Low Voltage Directive

UKCA Electrical Equipment (Safety) Regulations 2016 (SI 2016/1101)

CE 2014/30/EU: EC Directive of Electromagnetic Compatibility

UKCA Electromagnetic Compatibility Regulations 2016 (SI 2016/1091)

230 VAC/0.66 AMP/160 W/50-60 Hz with power plug type European CEE 7-7 (Other types available upon request)

120 VAC/1.33 AMP/160 W/50-60 Hz with power plug type North American NEMA 5-15 (Other types available upon request)

Adjustable Conversion Rate: the amount Ethy-Gen® II that converts to ethylene is a user-selectable rate and varies from 2 to 4 liters per 24 hours (additional and custom rates available).

Tank Volume: Holds 2.5 Liters

Ethylene Output: Approximately 0.386 m3 / 13.63 ft3 of ethylene will result from the conversion of one liter of Ethy-Gen® II in a minimum period of 6 hours.

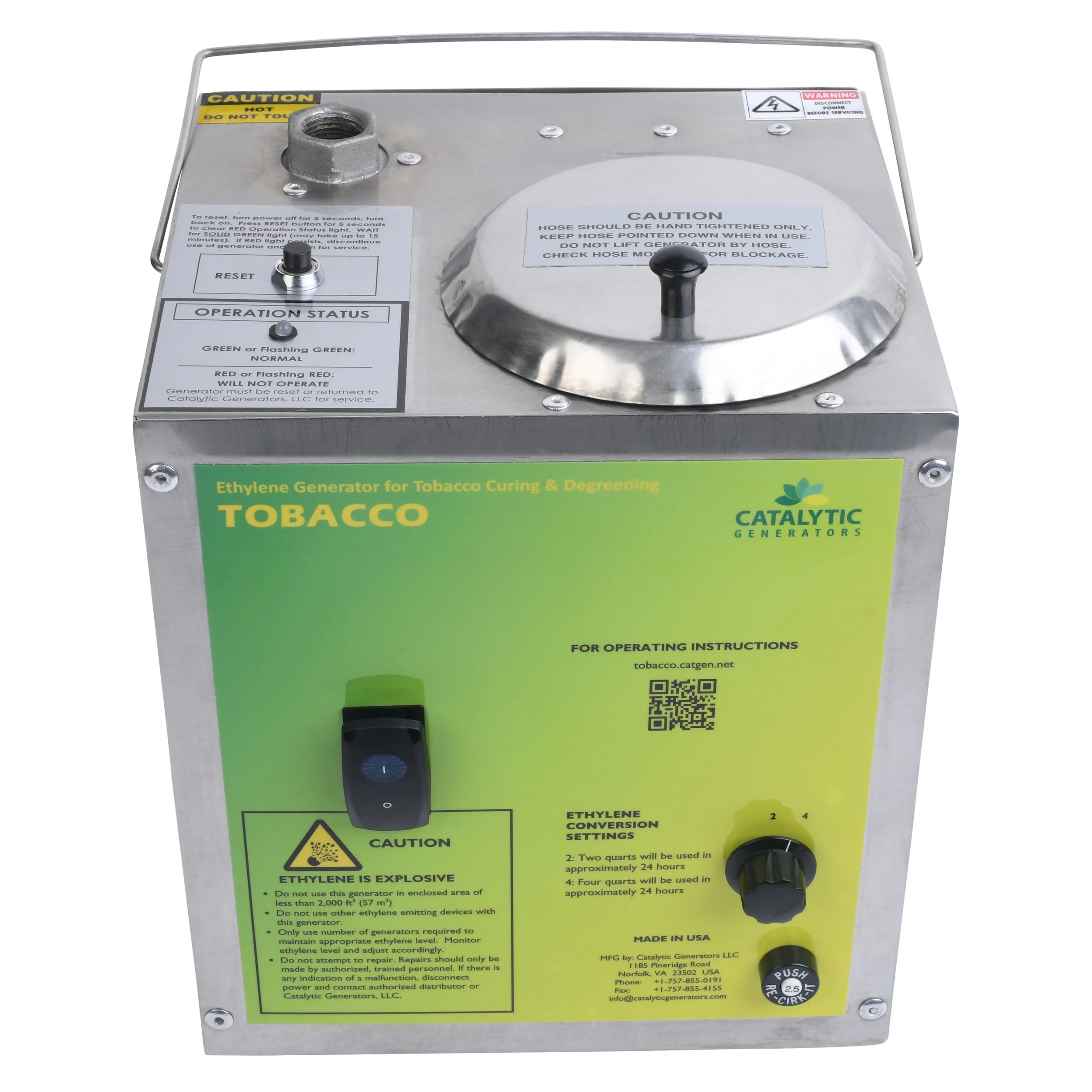

Monitoring of ethylene conversion with highly visible light indication showing the operation status of the unit; a green light makes it clearly evident of ethylene production, or a red light will provide an alert in the rare occurrence of a malfunction.

Place on floor or request optional wall-mount system.

Barn furnace room is the usual location. For more details, see this page.

12” H X 9.25” D X 9.5” W —— 31 CM X 24 CM X 25 CM

11 Pounds —— 5 Kilograms

One (1) year warranty included. Extended warranties available.
