It’s Easy!! For full operating instructions, go here.

Place generator in a convenient location inside ripening/degreening/storage room

With power off and generator disconnected from electrical outlet, open reservoir cover, pour in up to liters of Ethy-Gen® II Ripening Concentrate, and close cover

Plug generator into a properly grounded mains electrical outlet of correct voltage.

Select an Ethy-Gen® II to ethylene conversion setting, using the rotator switch located on front panel

Turn generator ON when ready to use. Ethylene production begins in just a few minutes!

Follow proven ripening/degreening/storage procedures, with generator on and Ethy-Gen® II in reservoir.

Turn generator OFF when ethylene application is complete.

Produces consistent, non-pressurized and safe ethylene levels for uniform degreening

No mixture with inert gas is needed as our system is inherently safe

Easy to make only as much ethylene as needed for the target room, no need to store large quantities of compressed gas on site

Each bottle of Ethy-Gen® II makes approximately 0.386 m3 / 13.63 ft3 of ethylene

There are no residues as a result of our ethylene application

Adjustable ethylene output allows for adaptation to any ethylene PPM requirement and any room size

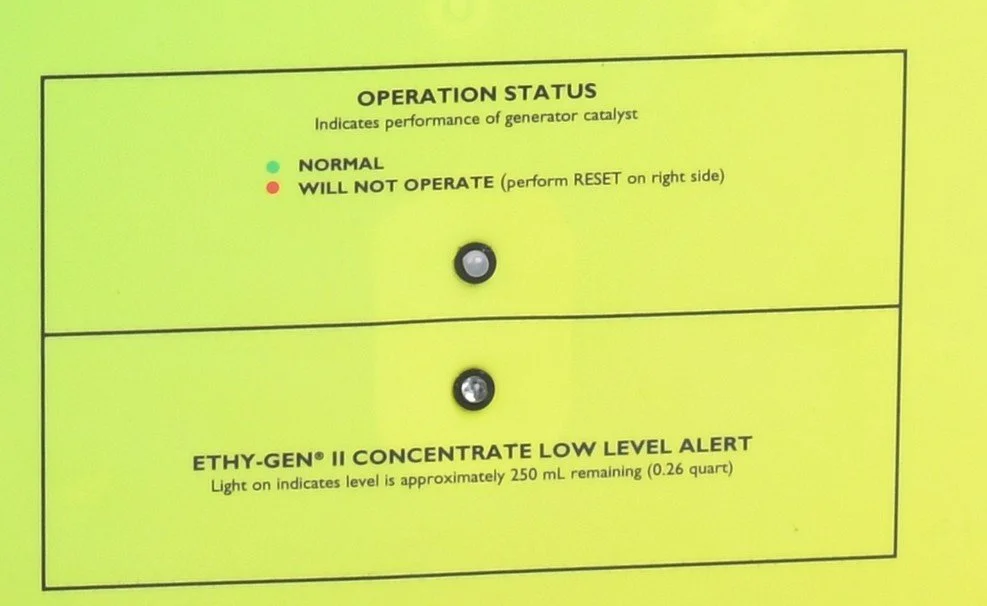

Low Level Indicator: Two LED lights turn on when the Ethy-Gen® II reservoir reaches low levels of 250 mL (0.26 qt.) or less.

TÜV SÜD, Certificate Number Z2 026083 0010

CE: 2014/35/EU: EC Low Voltage Directive

UKCA Electrical Equipment (Safety) Regulations 2016 (SI 2016/1101)

CE 2014/30/EU: EC Directive of Electromagnetic Compatibility

UKCA Electromagnetic Compatibility Regulations 2016 (SI 2016/1091)

230 VAC/0.66 AMP/160 W/50-60 Hz with power plug type European CEE 7-7 (Other types available upon request )

120 VAC/1.33 AMP/160 W/50-60 Hz with power plug type North American NEMA 5-15 (Other types available upon request )

Adjustable Conversion Rate: the amount Ethy-Gen® II that converts to ethylene is a user-selectable rate and varies from 0.5 to 2 liters per 24 hours (additional and custom rates available).

Tank Volume: Standard 4.0 Liters; 1.0 and 2.5 Liter tanks also available

Low Level Indicator: Two LED lights turn on when the Ethy-Gen® II reservoir reaches low levels of 250 mL (0.26 qt.) or less.

Ethylene Output: Approximately 0.386 m3 / 13.63 ft3 of ethylene will result from the conversion of one liter of Ethy-Gen® II in a minimum period of 12 hours.

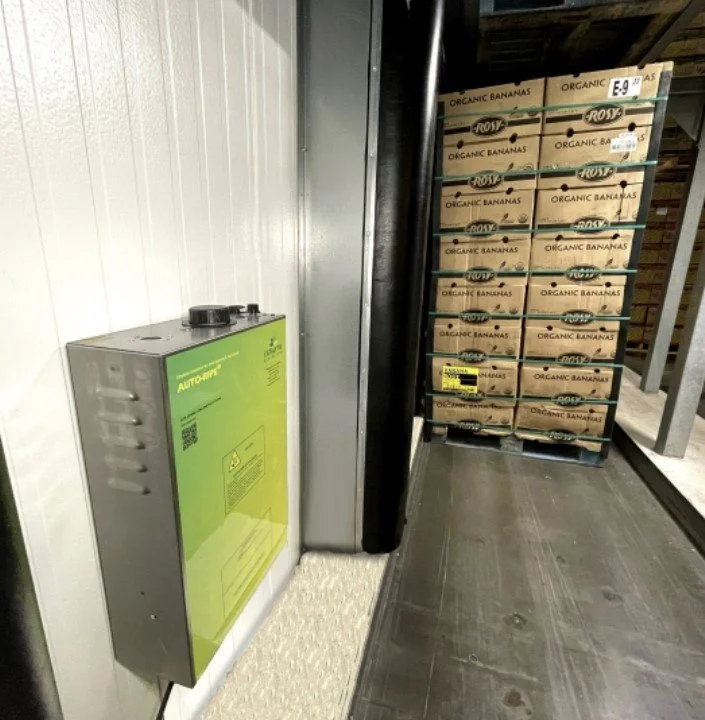

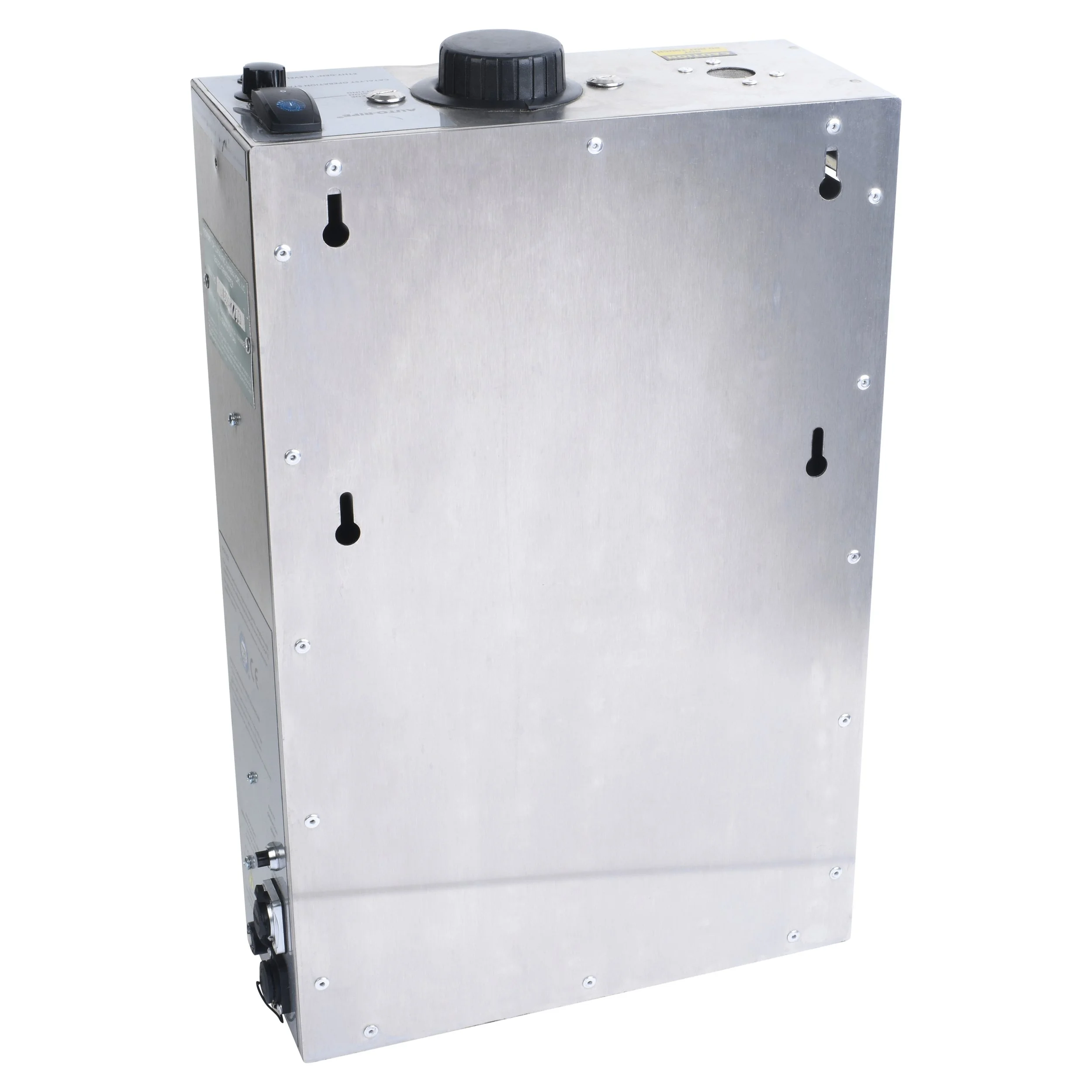

Place on wall with four screws using the included template, or request optional floor stand.

Location in room is wherever convenient and protected from traffic of pallet jacks and lifts.

Our generators can be used for fruit ripening in rooms that have a minimum cubic dimension of 57 cubic meters / 2000 cubic feet.

On the maximum side, the general rule is 10,000 cubic foot (285 cubic meters). The actual dimensions depends on several factors, including desired ethylene level and room “tightness” (how well-sealed the room is to prevent air loss).

For rooms larger than this, additional generators can be used, if needed, to achieve the proper ethylene level. It may be possible to use just one generator for a room that is larger than 10,000 ft3 / 285 m3; again, dependent upon how tight the room is. We have some customers that are able to use just one generator in rooms that are 570 m3 / 20,000 ft3 and still achieve 150 ppm of ethylene.

Remember, ethylene is explosive at 27,000 ppm; always use our generators in ripening rooms that are 57 m3 (2000 ft3) or larger. When using our equipment as directed, explosive levels of ethylene in ripening rooms are not possible.

Weight:
18 lbs (8.16 kg) / Shipping 20 lbs (9.07 kg)

Dimensions:
Height: 22.5 in. | 57.15 cm
Depth: 5.6 in. | 14.2 cm
Width: 13.8 in. | 34.93 cm

One (1) year warranty included. Extended warranties available.
